Epilepsy Detection Using Non-Linear Feature Analysis
A baseline setup
Electroencephalography (EEG) has long been an essential tool in neuroscience and clinical neurology for monitoring brain activity. With its non-invasive nature, EEG enables real-time recording of electrical signals produced by neurons in the brain, making it invaluable for diagnosing neurological conditions like epilepsy. However, the analysis of EEG signals can be challenging due to their non-stationary and complex nature. Researchers need efficient tools to extract meaningful patterns from these signals, especially for applications like automated seizure detection.
The main goal of this project is to extract features from epileptic data and perform classification to determine which types of features are most effective. As a baseline, we first extract statistical features from the time series and test how well they classify the data. Then, we apply the same classification tests using non-linear features.
Aquiring data and Denoising

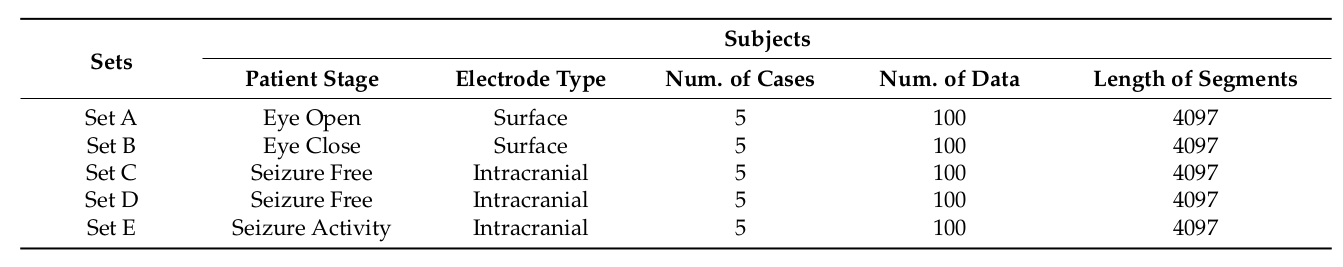

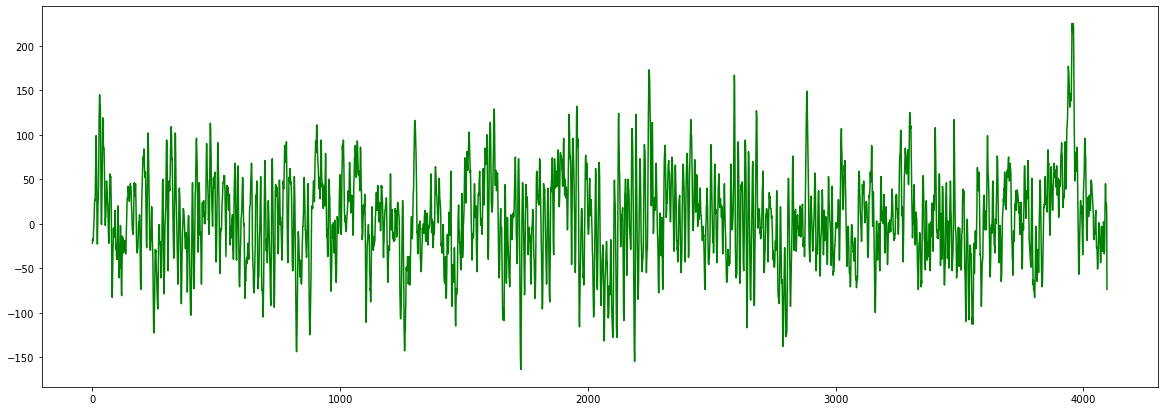

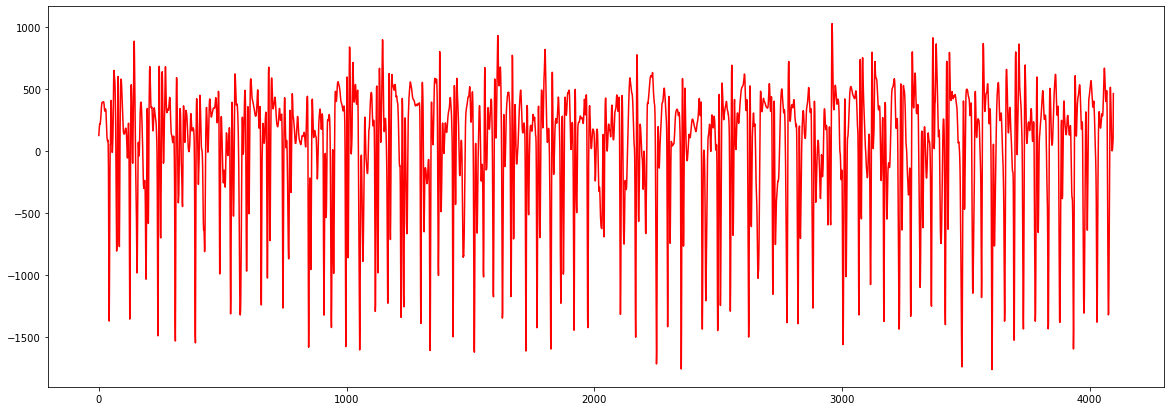

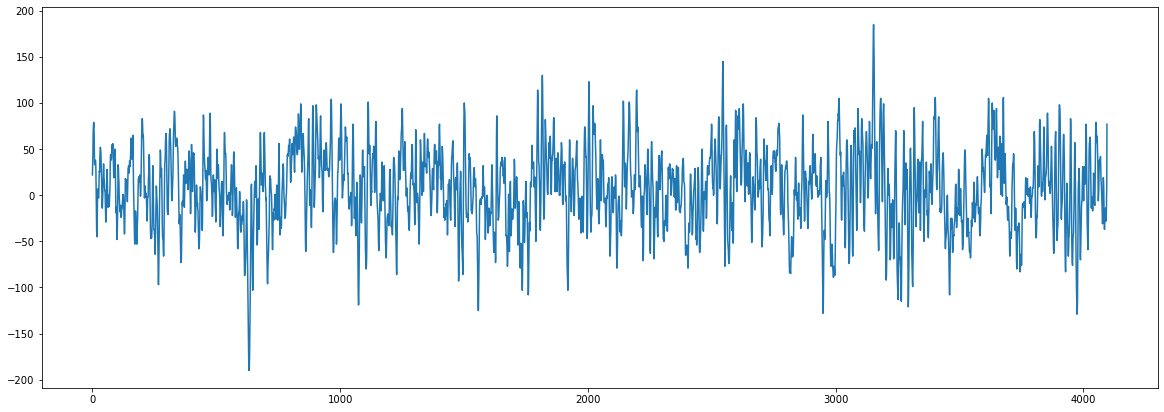

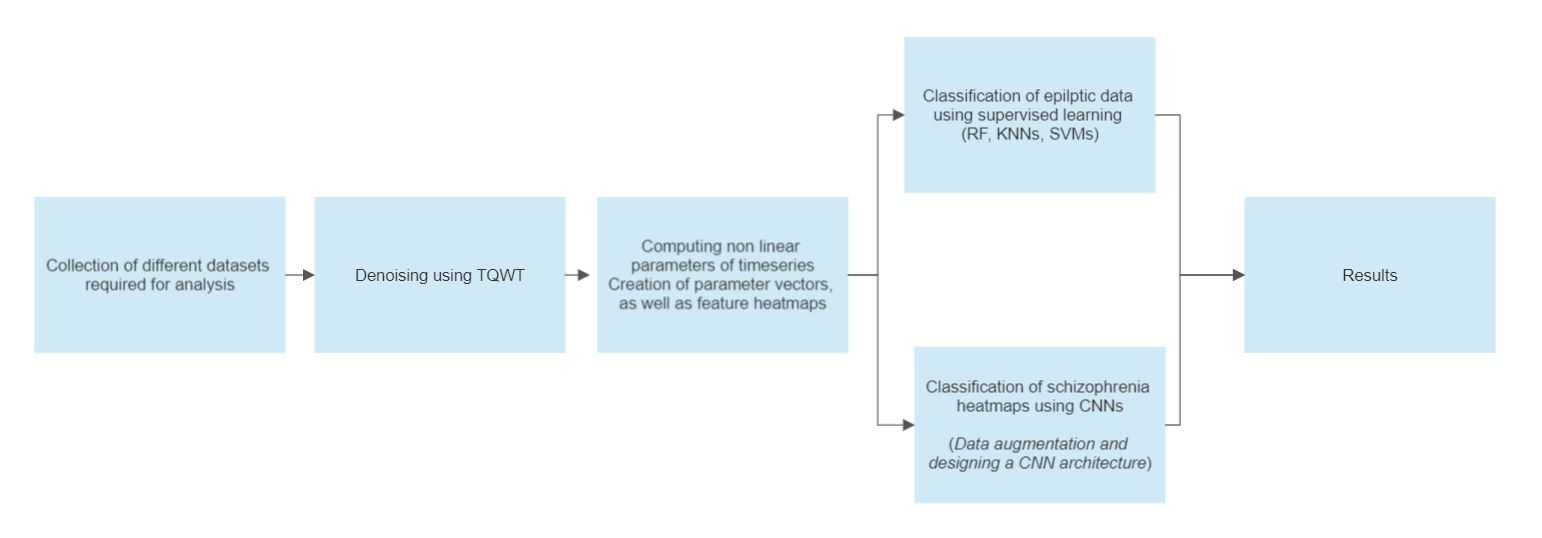

First, I will describe the basic methodology we will follow. The first step is to obtain a reliable dataset. For this project, I am using a standard dataset that is commonly available: the Bonn EEG dataset
To build a feature extractor we first parse our dataset. To do this, we first vectorize the data and save them into their respective arrays. Note that this is an implementation directly written to class named EpilepsyFeatureExtractor.
def load_data(self):
# List files in each folder
for folder in self.folders:
folder_path = os.path.join(self.base_path, folder)
files = sorted(os.listdir(folder_path))
self.data_names[folder] = [os.path.join(folder_path, f) for f in files if f.endswith('.eea')]
# Load data from files
for folder, arr in zip(self.folders, [self.arr_a, self.arr_b, self.arr_d, self.arr_e]):
for file in self.data_names[folder]:
data = pd.read_csv(file)
data = np.array(data)
arr = np.append(arr, data, axis=1)
if folder == 'A':
self.arr_a = arr
elif folder == 'B':
self.arr_b = arr
elif folder == 'D':
self.arr_d = arr
elif folder == 'E':
self.arr_e = arr
# Apply denoising to the loaded data
self.arr_a = self.denoise(self.arr_a.T)
self.arr_b = self.denoise(self.arr_b.T)
self.arr_d = self.denoise(self.arr_d.T)
self.arr_e = self.denoise(self.arr_e.T)Now that we have a dataset, we need to perform some sort of denoising. To acheive this, I tried using wavelet transform base approach. To this end, a recently developed method called Tunable Q wavelet transform is used by Selesnick et al
Now that we have a dataset, the next step is to perform denoising. To achieve this, I used a wavelet transform-based approach. Specifically, I implemented a method called Tunable Q Wavelet Transform (TQWT), developed by Selesnick et al. This method is highly adaptable to different types of time series profiles. I adapted the implementation from jollyjonson’s TQWT tools. TQWT performs multiresolution analysis using a Q factor, and after some trial and error, I set the Q and R parameters to 6 and 5, respectively.
This is implemented in the class as,
def denoise(self, arr):
den_arr = np.empty((4096, 0))
q = 6
redundancy = 5
stages = 10
n = len(arr[0, :])
for i in range(len(arr[:, 0])):
x = arr[i, :]
w = tqwt(x, q, redundancy, stages)
y = itqwt(w, q, redundancy, n)
y = np.array(y.real.reshape((4096, 1)))
den_arr = np.append(den_arr, y, axis=1)

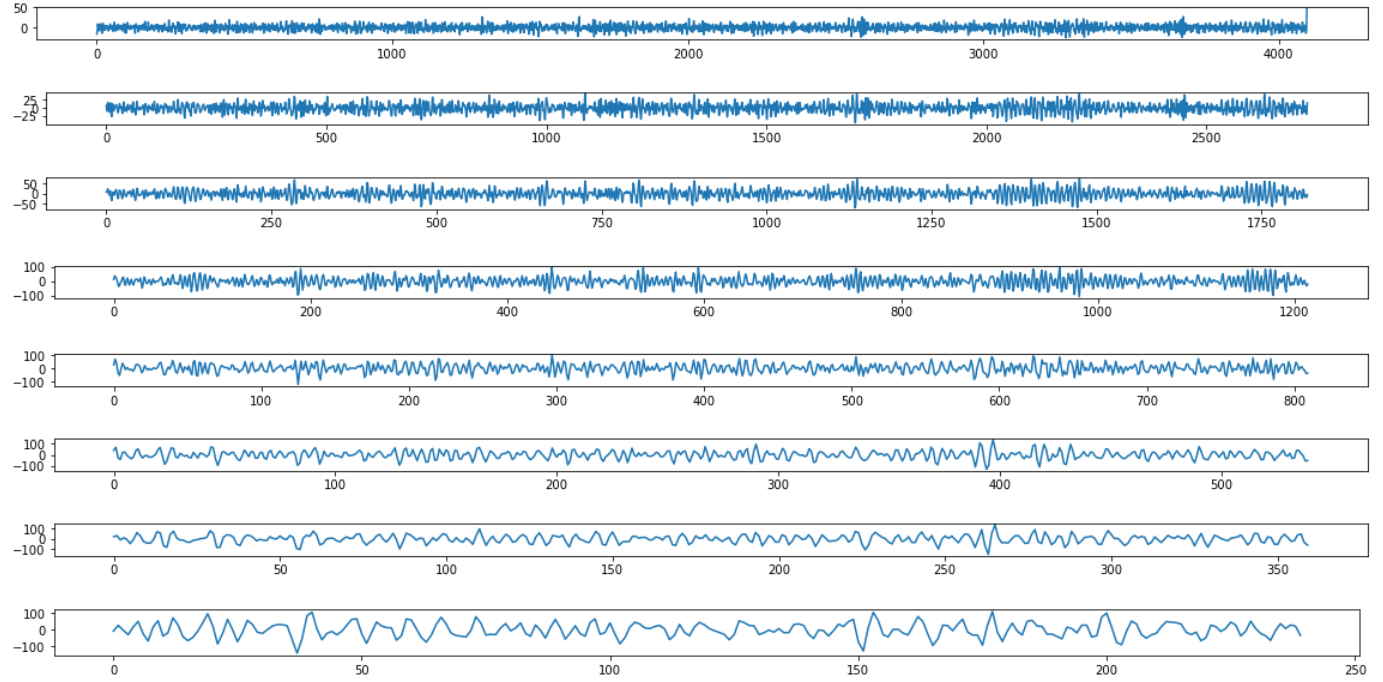

return den_arr.TAfter decomposition, the signal is recomposed to obtain the denoised version.
Extracting features
With the dataset denoised, the next step is to extract features from the data. We will focus on two sets of features: statistical and non-linear. Statistical features serve as a baseline, while non-linear features are the new additions we are exploring here.
Statistical features
To extract statistical features, we use the MNE-features package:
from mne_features.feature_extraction import FeatureExtractor
from mne_features.feature_extraction import extract_featuresWe will analyze only a subset of the dataset, so I created a helper function to select the samples:
def select_samples(self):
print(self.arr_a.shape)
data = np.array([self.arr_a[0:80], self.arr_b[0:80], self.arr_e[0:80]]).reshape(240, 1, 4096)
arr = data.reshape(240, 4096)
return arr,dataNext, we create a function to extract the statistical features:
def statistical_feature_extractor(self):
_,data = self.select_samples()
sfreq = 173.6 # Sampling frequency of the data
selected_funcs = ['mean','std','kurtosis','skewness'] # Stastical features of the data vector
stat_features = extract_features(data, sfreq, selected_funcs, funcs_params=None, n_jobs=1, ch_names=None, return_as_df=False) # Extracting them Using MNE package
stat_features = stat_features.T
return stat_featuresHere, we extract four main statistical features: mean, standard deviation, kurtosis, and skewness. To visualize these features, I added a helper function:
def plot_stat_features(self):
features = self.statistical_feature_extractor()
labels = ['Mean', 'Std', 'Kurtosis', 'Skewness']
colors = ['black', 'red', 'blue', 'green']
fig, axs = plt.subplots(2, 2, figsize=(12, 10))
axs = axs.ravel()
for i in range(4):
axs[i].plot(features[i, :],'o',color=colors[i], label=labels[i])
axs[i].axvline(x=160,color='orange')
axs[i].set_xlabel('Data Vector')
axs[i].set_ylabel(labels[i])
axs[i].legend()
plt.tight_layout()
plt.show()It is important to note that the first 160 data points are from non-epileptic data (categories A and B). After this, the features are computed from epileptic data.

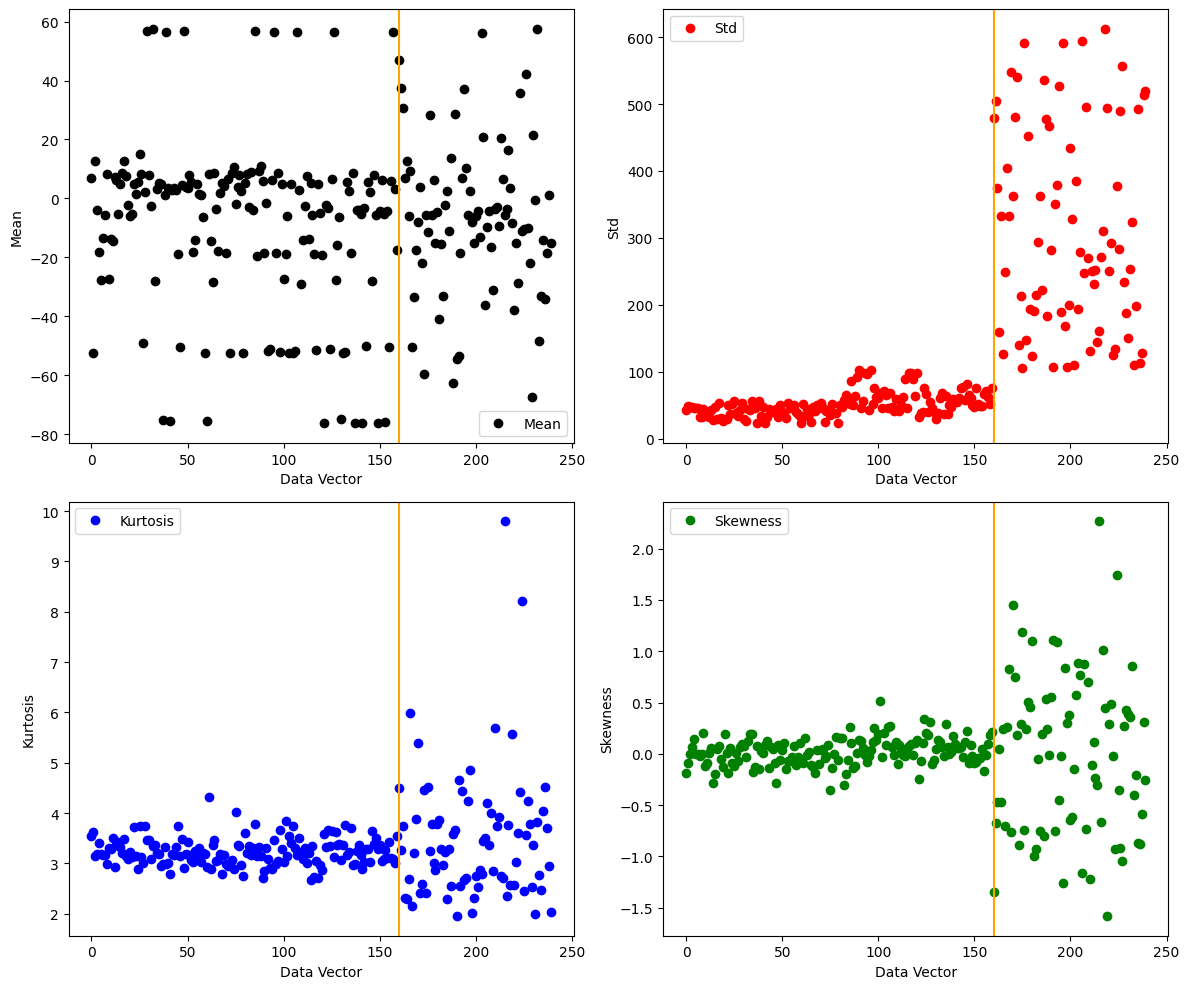

By plotting the statistical features, we can see that the features computed for non-epileptic data differ significantly from those computed for epileptic data. However, the mean does not seem to be a useful feature for classification in this case. For a better a visualisation we can plot them in a 3D feature space as well;
Non-linear/Chaotic features
With the baseline established using statistical features, we now turn to non-linear features. Before diving into the implementation, let’s briefly outline the four non-linear features we will compute:
- Lyapunov exponent (\(\lambda\))
- Hurst exponent (\(H\))
- Detrended Fluctuation Analysis (\(DFA\))
- Sample entropy (\(S\))
A brief description of them are given below
-
Lyapunov Exponent (\(\lambda\)): The Lyapunov exponent measures the rate at which nearby trajectories in a dynamical system diverge. A positive Lyapunov exponent indicates chaotic behavior, meaning that small changes in the initial conditions can lead to exponentially different outcomes. It is often used to quantify the presence of chaos in time series data.
-
Hurst Exponent (\(H\)): The Hurst exponent is a measure of the long-term memory of a time series. It quantifies the tendency of a time series to either regress strongly to the mean (H < 0.5), exhibit random walk behavior (H ≈ 0.5), or show persistent trends (H > 0.5). It is commonly used in fractal analysis and for understanding the predictability of time series.
-
Detrended Fluctuation Analysis (\(DFA\)): DFA is a technique used to detect long-range correlations in non-stationary time series. It removes trends from the data and then measures the fluctuation of the time series. This method is particularly useful for analyzing signals with varying trends or non-stationary properties, like EEG data.
-
Sample Entropy (\(S\)): Sample entropy quantifies the regularity and unpredictability of a time series. It measures the likelihood that two similar patterns in the time series remain similar over a given time interval. Lower sample entropy values indicate more predictability or regularity, while higher values suggest greater complexity or randomness.
All of these features can be computed using a single fucntional implementation in python. Here we use a python implemenation of these features using nolds.
first we import nolds
import noldsdef chaotic_feature_extractor(self):
data_s,_ = self.select_samples()
Lyaps = []
Hurst = []
Entropy = []
dfa = []
for i in tqdm(range(data_s.shape[0])):
l = nolds.lyap_r(data_s[i, :]) # Lyapunov Exponent
h = nolds.hurst_rs(data_s[i, :]) # Hurst Exponent
s = nolds.sampen(data_s[i, :]) # Sample entropy
d = nolds.dfa(data_s[i, :]) # Detrended fluctuation analysis
Lyaps.append(l)
Hurst.append(h)
Entropy.append(s)
dfa.append(d)
features = [Lyaps, Hurst, Entropy, dfa]
return np.array(features).TWe also similarly create a function to plot the features w.r.t datavector index,
def plot_chaotic_features(self):
features = self.chaotic_feature_extractor()
labels = ['Lyapunov Exponent', 'Hurst Exponent', 'Sample Entropy', 'DFA']
colors = ['black', 'red', 'blue', 'green']
fig, axs = plt.subplots(2, 2, figsize=(12, 10))
axs = axs.ravel()
for i in range(4):
axs[i].plot(features[:, i],'o',color=colors[i], label=labels[i])
axs[i].axvline(x=160,color='orange')
axs[i].set_xlabel('Data Vector')
axs[i].set_ylabel(labels[i])
axs[i].legend()
plt.tight_layout()

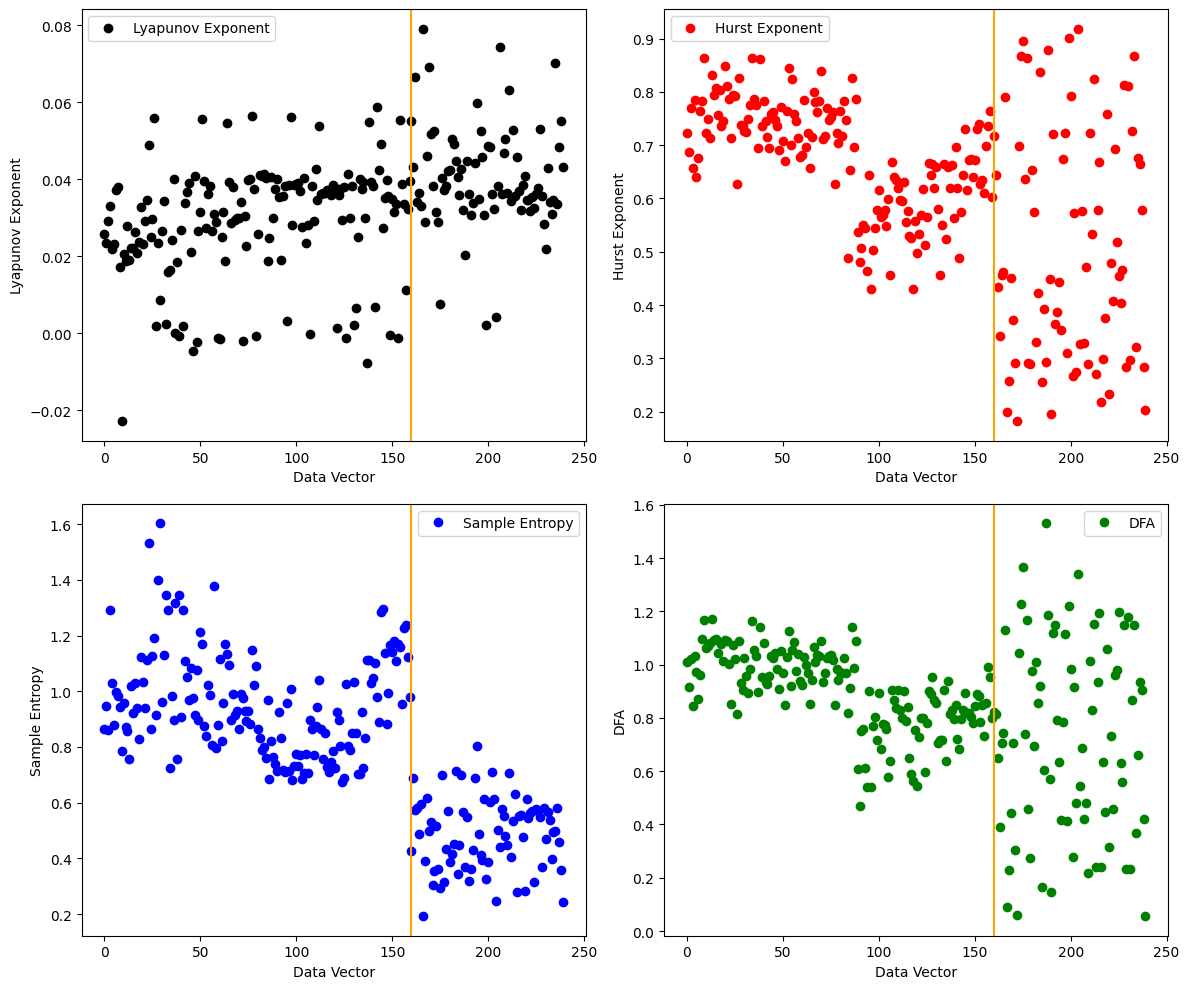

plt.show()We get the following result,
Also we create function to plot the feature space, ie, plot two different features together.
def plot_2d_features(self):
features = self.chaotic_feature_extractor()
labels = ['Lyapunov Exponent', 'Hurst Exponent', 'Sample Entropy', 'DFA']
colors = ['black', 'red', 'blue', 'green']
pairs = list(itertools.combinations(range(len(labels)), 2)) # Generate all pairs of feature indices
pair_labels = [(labels[x], labels[y]) for x, y in pairs]
fig, axs = plt.subplots(2, 3, figsize=(18, 12)) # Adjust the number of subplots accordingly
axs = axs.ravel()
for i, (x, y) in enumerate(pairs):
axs[i].scatter(features[:,x],features[:,y],label='Non Epileptic',alpha=0.7, edgecolors='black')
axs[i].scatter(features[:,x][200:300],features[:,y][200:300],label='Epileptic',c='r', alpha=0.7, edgecolors='black')
axs[i].set_xlabel(pair_labels[i][0])
axs[i].set_ylabel(pair_labels[i][1])
axs[i].set_title(f'{pair_labels[i][0]} vs {pair_labels[i][1]}')
plt.tight_layout()
plt.show()And the resultant plot looks like this,
Ha! There is a clear seperation within the feature space. This is a very good sign! since it clearly says that we can classify them nicely. To see this more clearly, we can plot them in a 3D feature space as well, by selecting three features from the feature set.
Classification
Now to test classification, we use three classic classifiers. Support vector machines (SVM) K-nearest neighbours (KNN) and Random forest (RF). To achieve this, we first import all the neccessary classifiers from scikit-learn package.
from sklearn.neighbors import KNeighborsClassifier
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import StratifiedKFold, cross_val_score
from sklearn.pipeline import Pipeline
from sklearn.multioutput import MultiOutputClassifier
from EpilepsyFeatureExtractor import EpilepsyFeatureExtractorSince we have a limited amount of data, we employ cross-validation (CV) across different folds to ensure the robustness of our results. You can read more about cross-validation techniques here. For our classification task, we compute the CV scores and store them in a pandas DataFrame for easier tabular visualization.
extractor = EpilepsyFeatureExtractor()
extractor.load_data()
#Extract features to perform the classification.
stat_features = extractor.statistical_feature_extractor()
chaotic_features = extractor.chaotic_feature_extractor()
# Create labels: 0 for non-epileptic, 1 for epileptic
y = np.zeros(240)
y[160:] = 1 # The last 80 samples are epileptic
def run_classifiers(features, y):
classifiers = {
'RandomForest': RandomForestClassifier(n_estimators=100, max_depth=4, random_state=42),
'SVM': svm.SVC(),
'KNN': KNeighborsClassifier(n_neighbors=1)
}
results = []
skf = StratifiedKFold(n_splits=4, shuffle=True, random_state=42)
for name, clf in classifiers.items():
pipe = Pipeline([('clf', clf)])
scores = cross_val_score(pipe, features, y, cv=skf)
results.append({
'Classifier': name,
'Mean Accuracy': np.mean(scores),
'Std Dev': np.std(scores)
})
return results
# Run classifiers on statistical features
stat_results = run_classifiers(stat_features.T, y)
# Run classifiers on chaotic features
chaotic_results = run_classifiers(chaotic_features, y)
# Combine statistical and chaotic features
combined_features = np.hstack((stat_features.T, chaotic_features))
# Run classifiers on combined features
combined_results = run_classifiers(combined_features, y)
# Combine results and create a DataFrame
all_results = pd.DataFrame(stat_results + chaotic_results + combined_results)
all_results['Feature Type'] = ['Statistical']*len(stat_results) + ['Chaotic']*len(chaotic_results) + ['Combined']*len(combined_results)
# Display the results
print(all_results)Results
The final scores are as follows,
| Classifier | Mean Accuracy | Std Dev | Feature Type |
|---|---|---|---|
| RandomForest | 0.995833 | 0.007217 | Statistical |
| SVM | 0.979167 | 0.021651 | Statistical |
| KNN | 1.000000 | 0.000000 | Statistical |
| RandomForest | 0.970833 | 0.007217 | Chaotic |
| SVM | 0.970833 | 0.007217 | Chaotic |
| KNN | 0.979167 | 0.013819 | Chaotic |
| RandomForest | 0.995833 | 0.007217 | Combined |
| SVM | 0.975000 | 0.018634 | Combined |
| KNN | 1.000000 | 0.000000 | Combined |
We can see that the non-linear features provide comparable results in classification. While there are many classifiers to choose from, we always have the flexibility to introduce new features and combine them to achieve better classification accuracy.
Complete implementation

class EpilepsyFeatureExtractor:
def __init__(self):
shutup.please()
self.base_path = '/home/hari/projects/BonnData'
self.folders = ['A', 'B', 'D', 'E']
self.file_prefixes = {'A': 'Z', 'B': 'O', 'D': 'F', 'E': 'S'}
self.data_names = {folder: [] for folder in self.folders}
self.arr_a = np.empty((4096, 0))
self.arr_b = np.empty((4096, 0))
self.arr_d = np.empty((4096, 0))
self.arr_e = np.empty((4096, 0))
def load_data(self):
# List files in each folder
for folder in self.folders:
folder_path = os.path.join(self.base_path, folder)
files = sorted(os.listdir(folder_path))
self.data_names[folder] = [os.path.join(folder_path, f) for f in files if f.endswith('.eea')]
# Load data from files
for folder, arr in zip(self.folders, [self.arr_a, self.arr_b, self.arr_d, self.arr_e]):
for file in self.data_names[folder]:
data = pd.read_csv(file)
data = np.array(data)
arr = np.append(arr, data, axis=1)
if folder == 'A':
self.arr_a = arr
elif folder == 'B':
self.arr_b = arr
elif folder == 'D':
self.arr_d = arr
elif folder == 'E':
self.arr_e = arr
# Apply denoising to the loaded data
self.arr_a = self.denoise(self.arr_a.T)
self.arr_b = self.denoise(self.arr_b.T)
self.arr_d = self.denoise(self.arr_d.T)
self.arr_e = self.denoise(self.arr_e.T)
def denoise(self, arr):
den_arr = np.empty((4096, 0))
q = 6
redundancy = 5
stages = 10
n = len(arr[0, :])
for i in range(len(arr[:, 0])):
x = arr[i, :]
w = tqwt(x, q, redundancy, stages)
y = itqwt(w, q, redundancy, n)
y = np.array(y.real.reshape((4096, 1)))
den_arr = np.append(den_arr, y, axis=1)
return den_arr.T
def select_samples(self):
print(self.arr_a.shape)
data = np.array([self.arr_a[0:80], self.arr_b[0:80], self.arr_e[0:80]]).reshape(240, 1, 4096)
arr = data.reshape(240, 4096)
return arr,data
def statistical_feature_extractor(self):
_,data = self.select_samples()
sfreq = 173.6 # Sampling frequency of the data
selected_funcs = ['mean','std','kurtosis','skewness'] # Stastical features of the data vector
stat_features = extract_features(data, sfreq, selected_funcs, funcs_params=None, n_jobs=1, ch_names=None, return_as_df=False) # Extracting them Using MNE package
stat_features = stat_features.T
return stat_features
def plot_stat_features(self):
features = self.statistical_feature_extractor()
labels = ['Mean', 'Std', 'Kurtosis', 'Skewness']
colors = ['black', 'red', 'blue', 'green']
fig, axs = plt.subplots(2, 2, figsize=(12, 10))
axs = axs.ravel()
for i in range(4):
axs[i].plot(features[i, :],'o',color=colors[i], label=labels[i])
axs[i].axvline(x=160,color='orange')
axs[i].set_xlabel('Data Vector')
axs[i].set_ylabel(labels[i])
axs[i].legend()
plt.tight_layout()
plt.show()
def chaotic_feature_extractor(self):
data_s,_ = self.select_samples()
Lyaps = []
Hurst = []
Entropy = []
dfa = []
for i in tqdm(range(data_s.shape[0])):
l = nolds.lyap_r(data_s[i, :]) # Lyapunov Exponent
h = nolds.hurst_rs(data_s[i, :]) # Hurst Exponent
s = nolds.sampen(data_s[i, :]) # Sample entropy
d = nolds.dfa(data_s[i, :]) # Detrended fluctuation analysis
Lyaps.append(l)
Hurst.append(h)
Entropy.append(s)
dfa.append(d)
features = [Lyaps, Hurst, Entropy, dfa]
return np.array(features).T
def plot_chaotic_features(self):
features = self.chaotic_feature_extractor()
labels = ['Lyapunov Exponent', 'Hurst Exponent', 'Sample Entropy', 'DFA']
colors = ['black', 'red', 'blue', 'green']
fig, axs = plt.subplots(2, 2, figsize=(12, 10))
axs = axs.ravel()
for i in range(4):
axs[i].plot(features[:, i],'o',color=colors[i], label=labels[i])
axs[i].axvline(x=160,color='orange')
axs[i].set_xlabel('Data Vector')
axs[i].set_ylabel(labels[i])
axs[i].legend()
plt.tight_layout()
plt.show()
def plot_2d_features(self):
features = self.chaotic_feature_extractor()
labels = ['Lyapunov Exponent', 'Hurst Exponent', 'Sample Entropy', 'DFA']
colors = ['black', 'red', 'blue', 'green']
pairs = list(itertools.combinations(range(len(labels)), 2)) # Generate all pairs of feature indices
pair_labels = [(labels[x], labels[y]) for x, y in pairs]
fig, axs = plt.subplots(2, 3, figsize=(18, 12)) # Adjust the number of subplots accordingly
axs = axs.ravel()
for i, (x, y) in enumerate(pairs):
axs[i].scatter(features[:,x],features[:,y],label='Non Epileptic',alpha=0.7, edgecolors='black')
axs[i].scatter(features[:,x][200:300],features[:,y][200:300],label='Epileptic',c='r', alpha=0.7, edgecolors='black')
axs[i].set_xlabel(pair_labels[i][0])
axs[i].set_ylabel(pair_labels[i][1])
axs[i].set_title(f'{pair_labels[i][0]} vs {pair_labels[i][1]}')
dot.tight_layout()
plt.show()
# Example usage:
# classifier = EpilepsyClassifier()
# classifier.load_data()
# classifier.plot_chaotic_features()
# classifier.plot_2d_features()Background image credits : Chris Hope, CC BY 2.0, via Wikimedia Commons
